Story
Technical details
Series | BR 09 |
Set-up | C (C) |
Length | 8920 mm |
Diameter driving wheels | 1372 mm |
Weight full | 50 ton |
Maximum speed | 44 km/h |
Technical details | An English Electric 6KT engine provided power to an English Electric 801 DC generator. 2 English Electric 506 traction motors were used. Class 09 was equal to class 08, except for a different gearing which made a higher high-speed of 44.2 km/h. |
Updated on | 3-6-2024 |
Engine manufacturer | English Electric |
Description | 6 KT |
Engine set-up | L 6 |
Bore | 254 mm |
Stroke | 305 mm |
Fueltype | diesel |
Power | 261 kW |

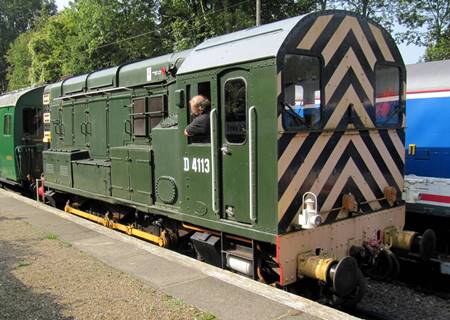

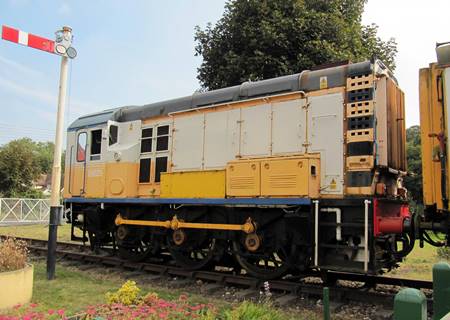

Photos
